C++ Binary Reversing with Runtime Breakpoints – K17 CTF 2025: Secure Exam Browser
TL;DR
- C++ binary performing runtime password verification.
- Heavy decode routine avoided via control-flow analysis.
- Early exit and verification logic identified in Ghidra.
- Runtime breakpoints used to intercept decoded password in memory.
Description
I love academic misconduct
Solution
We'll follow the usual reversing methodology; basic file checks, static analysis, dynamic analysis.
Basic File Checks
64-bit binary, not stripped (easier to reverse).
file seb
seb: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=c07f6718ca003c40c5170f23910830a91e90633e, for GNU/Linux 3.2.0, not stripped
Running the program, it asks us for a password. Apparently they changed it from universal default 😸
./seb
Welcome to Secure Exam Browser
Enter Password: meow
ERR: another process is running!
ltrace and strace don't give a quick win, over to ghidra.
Static Analysis
I started by renaming all the variables in the main function. I still do this out of habit (methodology), but honestly it's easier and faster to use ChatGPT. From the syntax, I can see the application was C++ and while the ghidra output cannot be compiled directly, ChatGPT can re-create it nicely.
main.cpp
#include <iostream>
#include <string>
#include <cstring>
extern std::string enc_p;
void decode_flag(std::string &out, const std::string &enc);
int main() {
std::cout << "Welcome to Secure Exam Browser\n";
std::cout << "Enter Password: ";
std::string input;
if (!(std::cin >> input)) return 1;
std::string decoded;
decode_flag(decoded, enc_p);
if (input.size() == decoded.size()) {
if (!input.empty()) {
if (std::memcmp(input.data(), decoded.data(), input.size()) != 0) {
std::cout << "Incorrect password!\n";
return 0;
}
}
std::cout << "Integrity check complete!\n";
std::cout << "No exams available. Exiting.\n";
} else {
std::cout << "Incorrect password!\n";
}
return 0;
}
decode_flag.cpp
#include <string>
#include <cstring>
#include <stdexcept>
static void step_bool_functor(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param);
static void step_next_functor(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param);
static void step_next_functor_b(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long *state);
static void run_pipeline(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param_big, unsigned long param2);
void decode_flag(std::string &out, const std::string &enc) {
size_t enc_len = enc.size();
if ((long)enc_len < 0) throw std::length_error("cannot create std::vector larger than max_size()");
unsigned char *enc_buf = nullptr;
if (enc_len == 0) {
enc_buf = nullptr;
} else {
enc_buf = (unsigned char*)operator new(enc_len);
std::memmove(enc_buf, enc.data(), enc_len);
}
size_t half_len = enc_len >> 1;
size_t out_size = half_len + 1;
unsigned char *out_buf = nullptr;
if (out_size == 0) {
out_buf = nullptr;
} else {
out_buf = (unsigned char*)operator new(out_size);
std::memset(out_buf, 0, out_size);
}
if (out_buf) out_buf[out_size - 1] = 0x2a;
int rounds = 3;
unsigned long param_big = 0x232f37UL;
unsigned long param_zero = 0;
run_pipeline(out_buf, out_size, enc_buf, enc_len, rounds, param_big, param_zero);
if (out_buf) {
out.assign((char*)out_buf, out_size ? out_size - 1 : 0);
} else {
out.clear();
}
if (out_buf) operator delete(out_buf);
if (enc_buf) operator delete(enc_buf);
}
static void run_pipeline(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param_big, unsigned long param2) {
if (!out || !in) return;
step_bool_functor(out, out_size, in, in_size, rounds, param_big);
step_next_functor(out, out_size, in, in_size, rounds, param_big);
step_next_functor_b(out, out_size, in, in_size, rounds, ¶m2);
step_next_functor(out, out_size, in, in_size, rounds, param_big);
}
static void step_bool_functor(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param) {
for (size_t i = 0; i < out_size - 1; ++i) {
unsigned char a = in[i % (in_size ? in_size : 1)];
out[i] = (unsigned char)((a + (param & 0xff) + rounds) & 0xff);
}
}
static void step_next_functor(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long param) {
for (size_t i = 0; i < out_size - 1; ++i) {
unsigned char v = out[i];
out[i] = (unsigned char)(((v << 3) | (v >> 5)) ^ ((unsigned char)(param >> ((i & 7) * 8))));
}
}
static void step_next_functor_b(unsigned char *out, size_t out_size, unsigned char *in, size_t in_size, int rounds, unsigned long *state) {
for (size_t i = 0; i < out_size - 1; ++i) {
unsigned char v = out[i];
out[i] = (unsigned char)(v ^ (unsigned char)(*state & 0xff));
*state = (*state >> 1) | ((*state & 1) << 31);
}
}

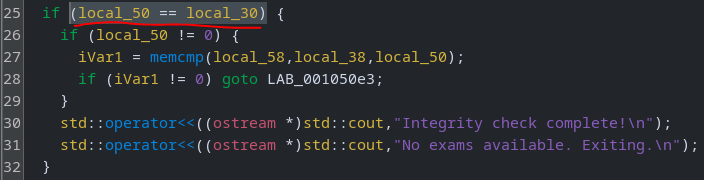

It looks like there's a lot going on in the decode_flag function but hey, did you notice this line in main? (this is the [manually] refactored/commented pseudocode from ghidra)
if (input_len == decoded_len) {
if (input_len != 0) {
match = memcmp(input_ptr,decoded_ptr,input_len); // compare 👀
if (match != 0) goto LAB_001050e3; // incorrect password
}
std::operator<<((ostream *)std::cout,"Integrity check complete!\n");
std::operator<<((ostream *)std::cout,"No exams available. Exiting.\n");
}
Dynamic Analysis

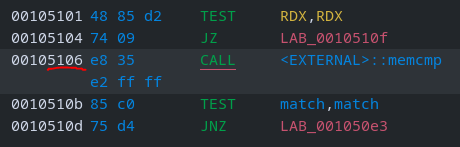

Why bother reversing that whole function, when we can just set a breakpoint after it? However, PIE is enabled on this binary - we don't yet know the address to set the breakpoint at, only the offset (0x5106). We could run GDB and break on the main function (or first instruction) and then check the address of the instruction we want to break at.

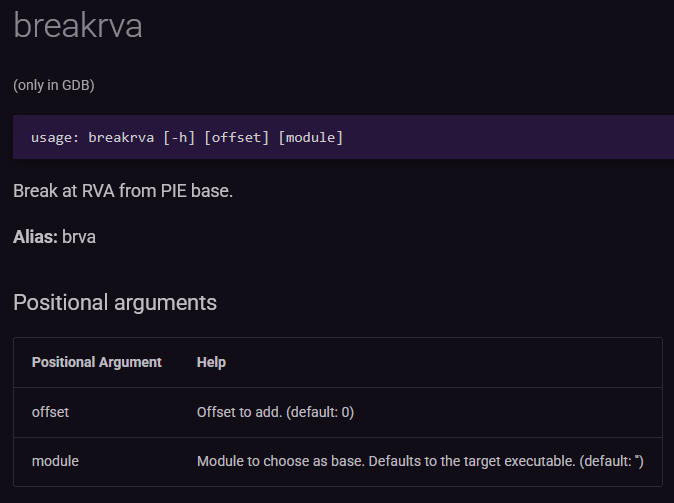

It's been too long since I did rev/pwn but I could have sworn there was a better way to do this in pwndbg (the GDB plugin). I spend a few minutes asking ChatGPT but it seems incapable of reading the docs (???), so I have to do it myself! I quickly find what I was looking for 😌
Perfect. We can use breakrva (or brva) to set a breakpoint at the desired offset. First run the program, then hit ctrl + C to pause execution.
breakrva 0x5106
Breakpoint 1 at 0x555555559106
I try to enter the password but we never reach the breakpoint.
meow
ERR: another process is running!

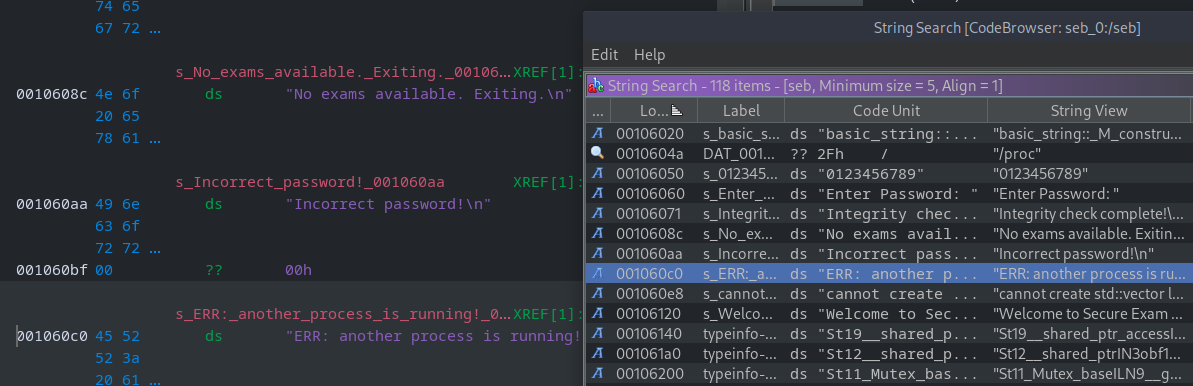

That pesky error again! I didn't see that string in the two functions, let's find it: search -> search for strings

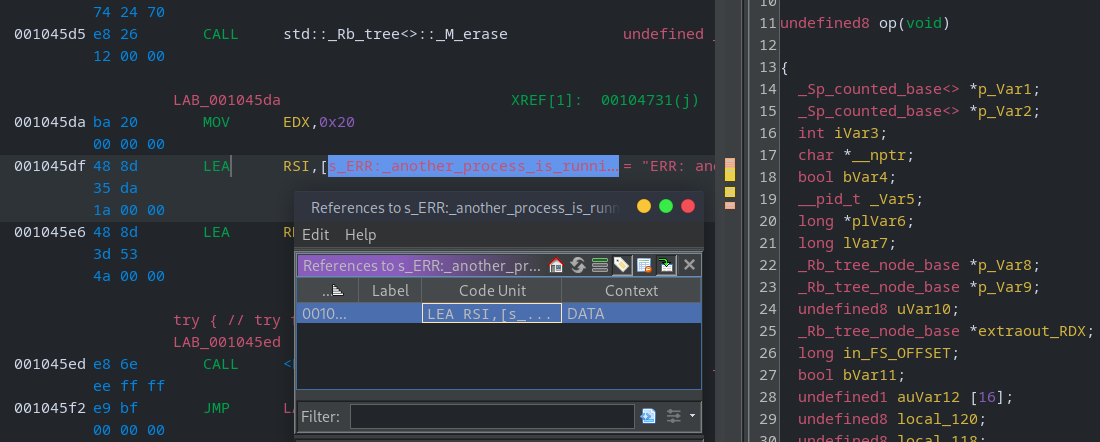

Check the references to string.
We quickly find the problematic exit call.
std::__ostream_insert<>((ostream *)std::cout,"ERR: another process is running!",0x20);
std::endl<>((ostream *)std::cout);
exit(1);
Binary Patching

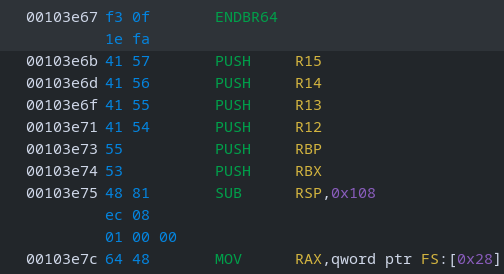

The function doesn't seem relevant to the challenge, but is preventing us from proceeding. What if we just patch the binary? The function starts at offset 0x3e67, let's patch that instruction.
Just right click -> patch instruction and change the code to return on entry.
MOV EAX, 0x1
RET
The pseudocode for the op() function now looks like this.
Save the binary and go to file -> export program and save as Original File with Export User Byte Modifications checked.
chmod +x patched; ./patched
Welcome to Secure Exam Browser
Enter Password: meow
Incorrect password!
Finally, it is checking the password! Let's open the patched binary in pwndbg and return to where we were earlier.
breakrva 0x5106
Breakpoint 1 at 0x555555559106
Hmmm, it still never triggers. Let's move the breakpoint a bit earlier (0x50dc)
001050dc 48 3b CMP RDX,qword ptr [RSP + local_30]
54 24 28
001050e1 74 15 JZ LAB_001050f8

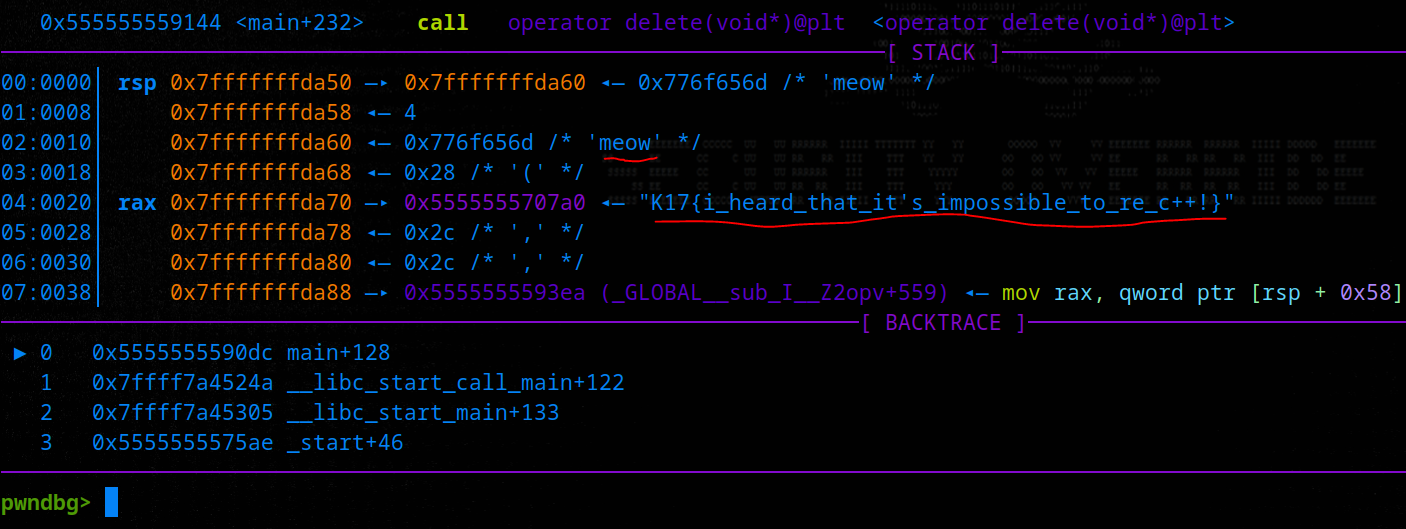

Run the program and this time when we enter the password, GDB hits a breakpoint and we have our flag 😎
Flag: K17{i_heard_that_it's_impossible_to_re_c++!}
